Facility managers know the frustration of installing fresh site warnings, only to watch them warp a month later. Summer heat destroys weak plastics. Winter winds snap brittle boards. Selecting quality signage materials from the start stops this frustrating cycle. It keeps sites compliant and looking completely professional year after year.
Why Most Cheap Panels Fail Early
Cheap signs fail early because thin plastics expand under heat and shear off their mounting points, while fading ink makes them quickly illegible.
- Corflute boards tear straight through mounting washers in high winds.
- Standard PVC foam boards warp outward when they can’t handle thermal movement.
- Moisture gets into unsealed edges and separates adhesive vinyl from the backing.
- Magenta inks disappear under UV exposure, leaving corporate logos looking entirely blue or green.
Heat causes rapid expansion in basic plastics like standard PVC. When fixed tightly to a rigid metal fence, the plastic has nowhere to move. It buckles outward dramatically.
Installers often see cheap boards fail completely within six months. The core board becomes entirely brittle under the harsh sun. It just doesn’t make financial sense to buy cheap materials for permanent zones. They just cop a hammering and need replacing immediately.
The Best Substrates for Industrial Use
The most reliable options for outdoor exposure are aluminium composite materials and solid aluminium because they hold their flat shape across massive temperature swings.
- Aluminium composite is highly favoured for rigid permanent warnings on fences.
- Solid aluminium handles extreme heat without warping or bowing outward.
- Polycarbonate offers extreme impact resistance for heavy industrial zones.
- Acrylic suits high-end corporate displays but requires careful mounting to avoid cracking.
Aluminium composite panels sandwich a separate core between two thin metallic sheets. This stops the board from expanding too much. It stays perfectly flat even on hot walls. Polycarbonate offers entirely different benefits for demanding sites. It absorbs heavy impacts easily.
Matching the board to the specific site environment remains standard practice. A dusty mining road needs a completely different backing than a corporate office wall. Experienced installers specify solid aluminium for anything requiring serious longevity. It handles stray knocks well.
Stopping Fading and Surface Cracking
Site managers stop fading and surface cracking by applying a heavy-duty protective laminate directly over the printed vinyl graphics.
- Protective laminates act exactly like sunscreen for the printed ink underneath.
- Heavy-duty clears prevent the printed vinyl graphics from shrinking in the sun.
- Quality lamination stops the adhesive backing from failing prematurely.
- Clear coats stop dirt and dust from embedding permanently into the raw ink.

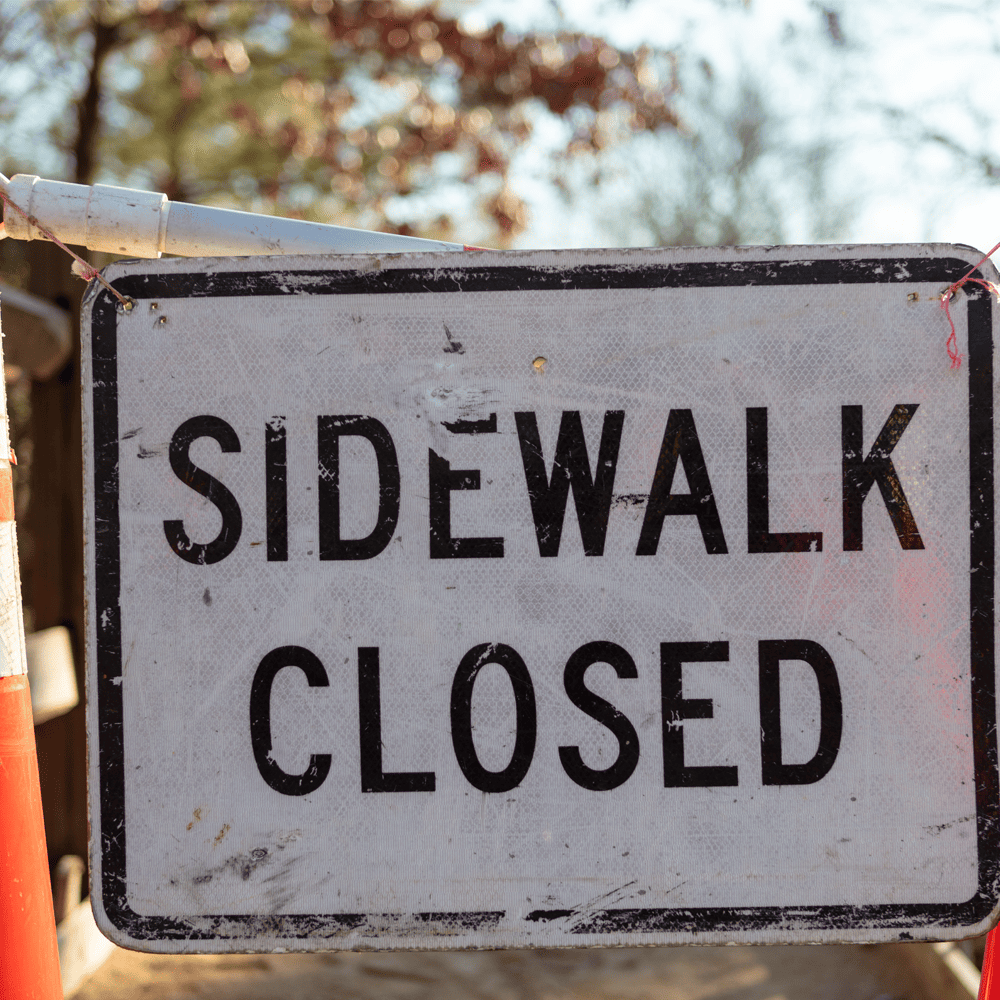

Bare ink simply can’t survive raw solar exposure for long. Raw magenta pigments bleach out incredibly quickly in the local climate. When magenta disappears, standard safety reds vanish completely.
The warning then looks blue, green, or pale pink. A good UV laminate stops this chemical breakdown. Without it, the graphics shrink rapidly over time. As the vinyl shrinks, it pulls away from the edges and curls up.
It’s an easy detail to miss on a standard purchase order. Experienced buyers always verify the exact lamination specs before signing off. Sourcing quality signage materials ensures the ink survives for years.
Hardware and Mounting Considerations
Strategic fixing points prevent bending by allowing thermal expansion through oversized drilled holes rather than tightly pinning the plastic.
- Installers drill oversized holes in the acrylic or composite board to allow movement.
- Crews fit large washers over the oversized holes to secure the panel safely.
- Stainless steel screws stop rust from bleeding down the face of the print.
- Leaving a tiny gap behind the screw head lets the panel slide slightly.
The best panel in the world still warps if it’s screwed down too tight. Metal fences and steel posts heat up at different rates to the attached plastics. This creates intense friction. Installers manage this by giving the materials room to breathe.
Untrained maintenance crews often drive standard zinc roofing screws straight through the face. The panel then tries expanding on a highly humid day. The rigid screws hold it firm. The middle of the board bulges out immediately.
When a rigid plastic panel gets too hot under heavy tension, it cracks. Drilling oversized holes prevents these stress fractures completely. It adds actual years to the installation.
Frequently Asked Questions
How Long Should an Outdoor Industrial Sign Last?
A properly specified commercial panel should remain legible and structurally sound for seven to ten years. Sun exposure dictates the exact lifespan of the printed layer in harsh climates. Quality substrates combined with protective laminates easily push past a decade of service.
Does Panel Material Prevent Wind Damage?
Rigid materials resist wind shear far better than thin plastic alternatives. Solid aluminium offers enough rigidity for standard post mounts without flexing heavily. Thin corflute boards simply fold and tear straight off their screws under high wind loads.
Can Protective Laminates Stop Sun Damage?
Protective laminates act exactly like sunscreen to stop UV rays from destroying the coloured pigments. They prevent standard red ink from fading out to a pale pink. These clear coats also stop the vinyl graphic from shrinking and peeling away from the edges.
Final Thoughts
Adding proper protective laminates stops the hot sun from turning bright warnings into illegible squares. The trade knows that correct installation matters just as much as the materials themselves. Leaving room for thermal expansion stops stress fractures in their tracks. It’s a simple fix that works.
